The MITSUBISHI diesel generator set is a premium industrial power generation system equipped with a high-performance Mitsubishi direct fuel injection diesel engine, designed for continuous and standby power applications. It delivers exceptional reliability, fuel efficiency, and stable output for critical power needs in industrial and commercial environments.
The generator set adopts a four-stroke, direct fuel injection engine with electronic speed regulation, ensuring precise control, strong power output, and improved fuel efficiency. The system is designed in compliance with ISO3046 international standards, guaranteeing high-quality performance and global reliability.

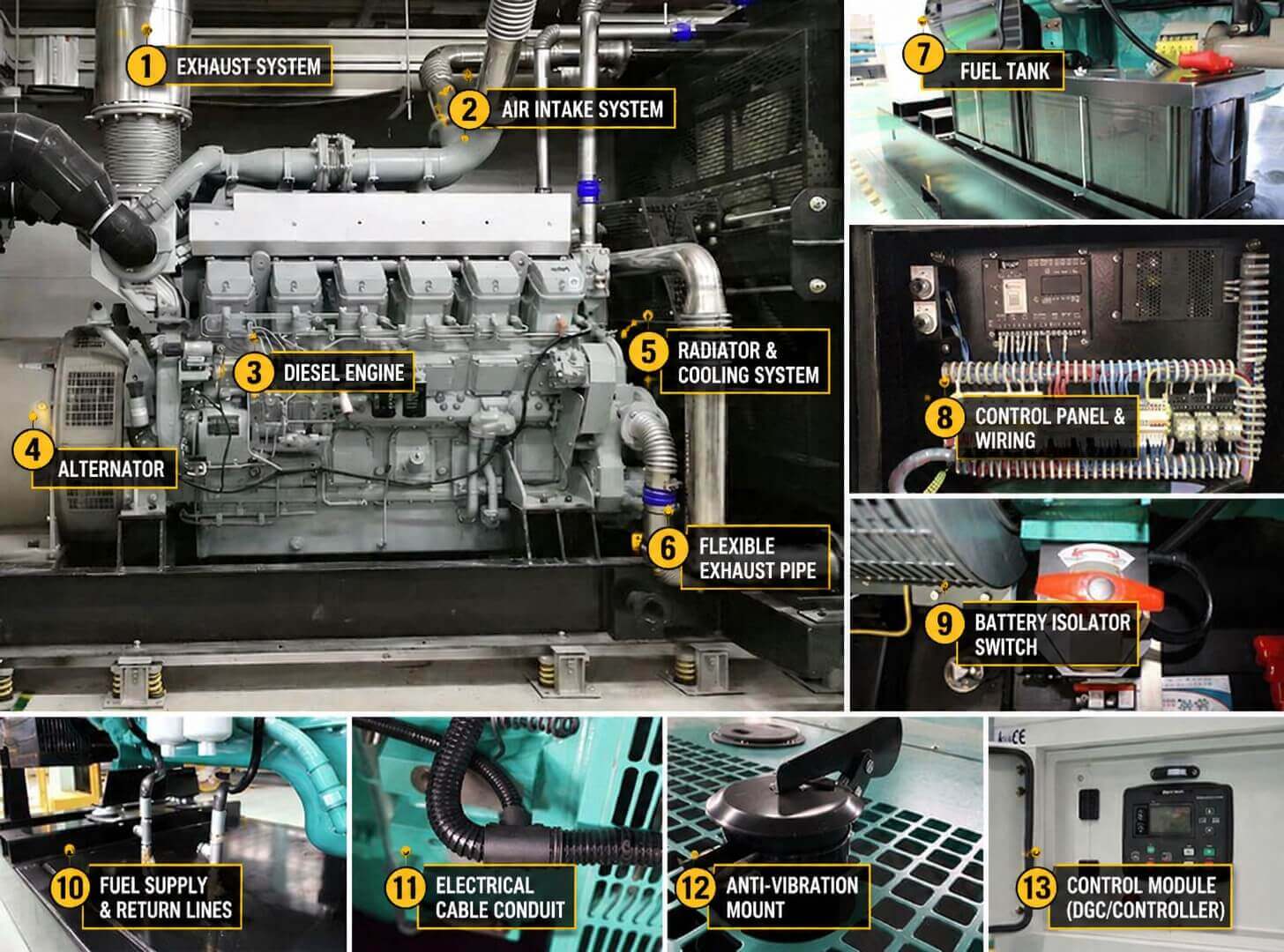

The MITSUBISHI generator set is equipped with an advanced fuel injection system, including:
(1)Fuel injection pump
(2)Low-pressure supply pump
(3)High-performance fuel filter
This ensures stable combustion, improved fuel efficiency, and reduced emissions for long-term operation.
The lubrication system is designed for maximum engine protection and durability, including:
Oil sump tank
Engine-driven lubricating oil pump
Oil cooler system
High-efficiency oil filter
Crankcase breather system
These components ensure smooth engine operation and extended service life.
The intake and exhaust system is engineered for optimal airflow and performance:
High-efficiency air filter
Exhaust gas turbocharger
Intercooler system
Dry exhaust manifold
This improves combustion efficiency, enhances power output, and reduces fuel consumption.
The generator set uses a reliable 24V DC electric starting system, including:
24V DC starter motor
24V DC charging generator (alternator)
This ensures fast and reliable engine starting under all conditions.
The MITSUBISHI genset features a closed-loop cooling system designed for stable temperature control:
Engine-driven water pump
Closed-cycle fan radiator system
Cooling water temperature regulator
This prevents overheating and ensures continuous operation in demanding environments.
The generator is equipped with a fuel electromagnetic shut-off valve system, providing fast and safe engine shutdown for improved operational safety.
This industrial generator is widely used in:
Industrial manufacturing plants
Commercial buildings and complexes
Hospitals and emergency backup power systems
Construction and infrastructure projects
Data centers and telecom power supply
MITSUBISHI diesel generator sets are known globally for their:
High reliability and durability
Stable power output
Low fuel consumption
Advanced engine technology
Long service life and low maintenance cost
They are an ideal solution for customers requiring stable, efficient, and long-lasting diesel power generation systems.

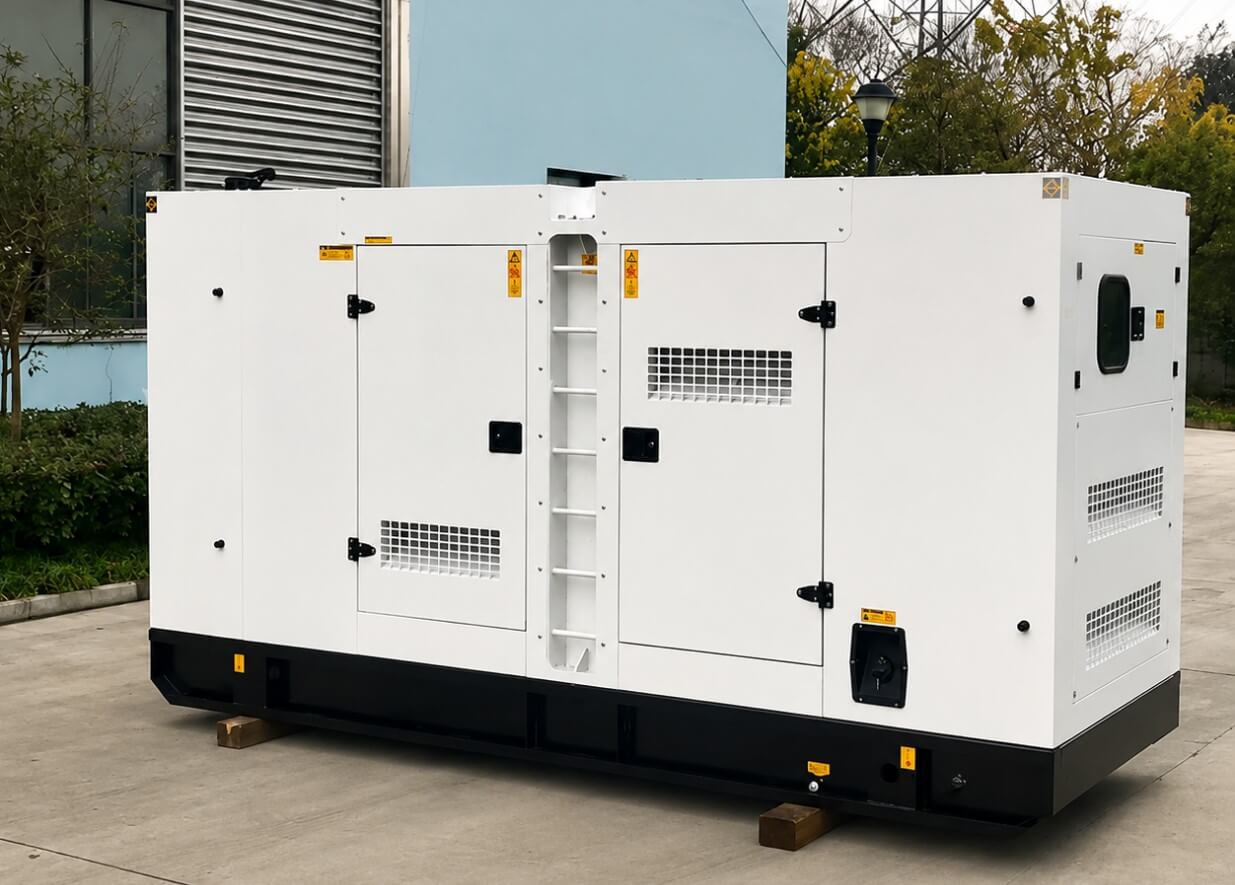

MISTUBISHI Powered Series Silent Type Gensets Configuration Table:
No. | GENSET | Prime Power | Standby Power | Engine | Cylinder | Displacement | Bore*Stroke | Fuel Consumption | Dimension | ||
KVA | KW | KVA | KW | MISTUBISHI | (nos) | (L) | (mm) | (g/kw.h) | mm | ||
1 | LW-M540 | 675 | 540 | 750 | 600 | S6R2-PTA | 6 | 14.6 | 17×220 | 205 | 6000×2300×2930 |
2 | LW-M600 | 750 | 600 | 825 | 660 | S6R2-PTAA | 6 | 18.6 | 170×220 | 205 | 6000×2300×2930 |
3 | LW-M620 | 775 | 620 | 875 | 700 | S12A2-PTA | 12 | 18.6 | 156×160 | 208 | 6000×2300×2930 |
4 | LW-M800 | 1000 | 800 | 1100 | 880 | S12H-PTA | 12 | 24.5 | 156×175 | 206 | 6000×2300×2930 |
5 | LW-M900 | 1125 | 900 | 1250 | 1000 | S12R-PTA | 12 | 30 | 170×180 | 200 | / |
6 | LW-M1000 | 1250 | 1000 | 1375 | 1100 | S12R-PTA2 | 12 | 30 | 170×180 | 207 | / |
7 | LW-M1200 | 1500 | 1200 | 1650 | 1320 | S12R-PTAA2 | 12 | 33.9 | 170×180 | 207 | / |
8 | LW-M1300 | 1625 | 1300 | 1812.5 | 1450 | S16R-PTA | 16 | 37.1 | 170×180 | 200 | / |
9 | LW-M1500 | 1875 | 1500 | 2062.5 | 1650 | S16R-PTA2 | 16 | 49 | 170×180 | 200 | / |
10 | LW-M1600 | 2000 | 1600 | 2250 | 1800 | S16R-PTAA2 | 16 | 49 | 170×180 | 200 | / |
11 | LW-M1800 | 2250 | 1800 | 2500 | 2000 | S16R2-PTAW | 16 | 49 | 170×220 | 200 | / |
