MTU Powered Diesel Generator Set – Industrial Reliable Power Solution
Hongkong Linkworld Equipment Co., Limited supplies high-performance MTU powered open type diesel power generating sets for industrial, commercial, infrastructure, mining, data center, hospital, oil & gas, and emergency standby power projects.
MTU diesel engines are well known for strong power output, reliable performance, advanced technology, low fuel consumption, and long service life. For projects requiring large power capacity and stable operation, MTU powered diesel generator sets are an excellent choice.
Our MTU series open type diesel generator sets are designed for customers who need reliable power, easy maintenance, strong heat dissipation, and convenient installation in generator rooms or protected outdoor sites. The generator set can be matched with high-quality alternators such as Stamford, Leroy Somer, Marathon, Mecc Alte, or customer-nominated alternator brands.
We can provide open type, silent type, containerized type, trailer type, and customized diesel generator solutions according to different project requirements.
The generator set features a water-cooled four-stroke engine with a 90° V-type cylinder arrangement, turbocharged intercooler, and wet-type replaceable cylinder liners. The design adopts a one-cylinder-one-head structure and a dry exhaust manifold, making maintenance and repair more convenient, efficient, and cost-effective.
Equipped with a dedicated ADEC electronic engine management system, the unit provides precise digital speed control and advanced operational management. Key components are fitted with data collection sensors for real-time monitoring. The system supports fault self-diagnosis, automatic alarm display, and intelligent operation, integrated with CAN bus communication technology for reliable performance.
(4000 Series: Automatically switches to half-cylinder mode under low load conditions to improve fuel efficiency.)
The engine adopts a three-piston-ring aluminum alloy structure, with wear-resistant cast iron top piston rings and reinforced valve seat rings, significantly extending service life. Piston cooling injection technology effectively improves thermal management, ensuring stable and reliable long-term operation under heavy-duty conditions.
The generator set uses an advanced electronically controlled fuel injection system, combined with in-cylinder direct injection technology. Emissions meet or exceed German TA Luft environmental standards. Intelligent electronic management ensures optimized combustion, reduced fuel consumption, and improved efficiency, achieving fuel consumption levels below 200 g/kWh.
(4000 Series: Equipped with advanced common rail injection technology for precise fuel delivery, improved combustion efficiency, and lower fuel consumption.)
The HKLW MTU Series Diesel Generator Set delivers stable operation, low vibration, low fuel consumption, and low noise levels. It features extended overhaul intervals, long service life, and high operational efficiency, making it ideal for industrial, commercial, and critical backup power applications.

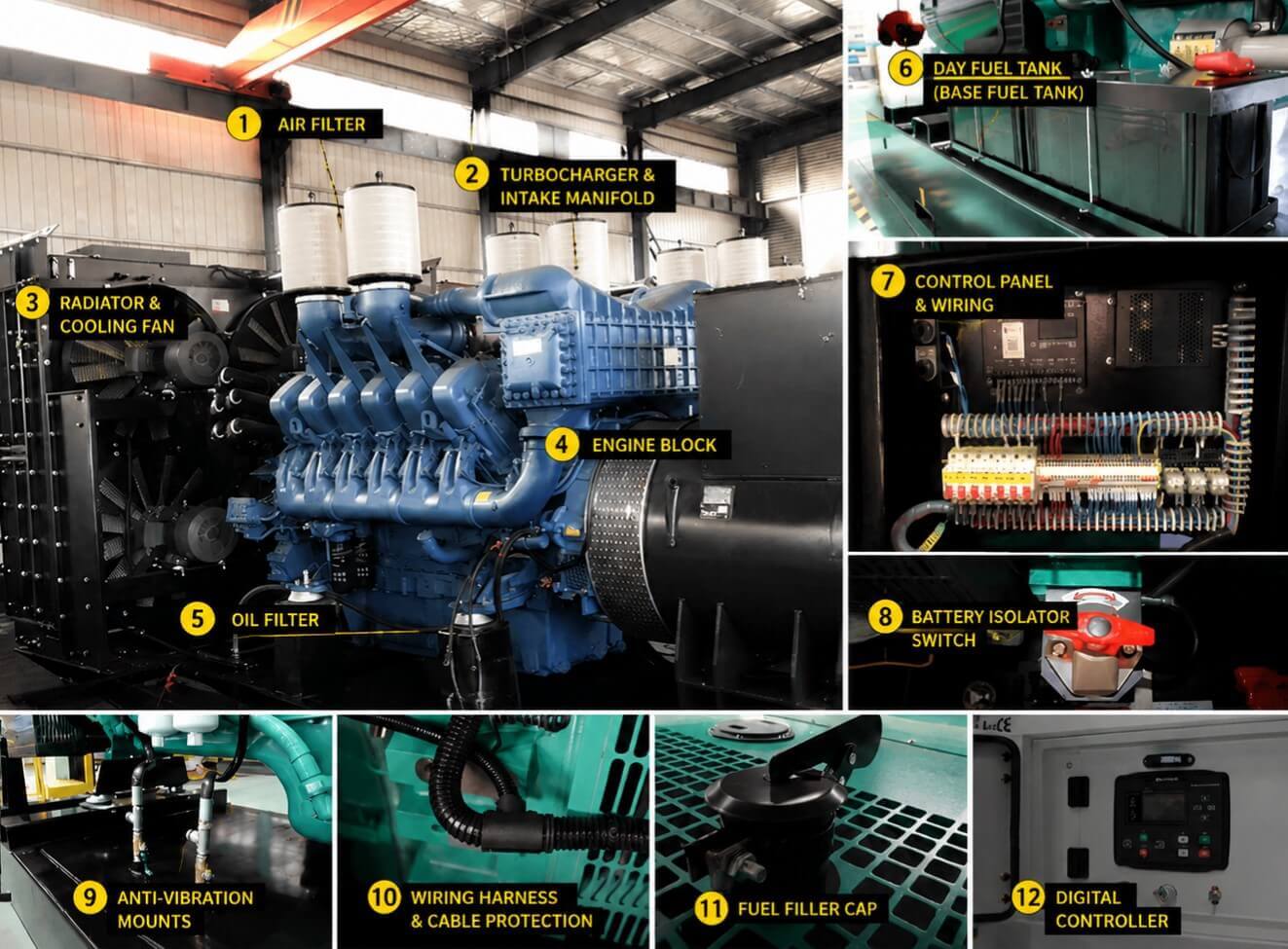

a. Brand-new MTU diesel engine.
b. Brushless alternator with AVR.
c. Heavy-duty steel base frame.
d. Anti-vibration mounting pads.
e. Radiator and cooling fan.
f. Intelligent control panel.
g. Main circuit breaker.
h. 12V / 24V electric starting system.
i. Maintenance-free battery and battery cables.
j. Industrial silencer.
k. Exhaust flexible pipe.
l. Standard air filter, oil filter, and fuel filter.
m. Operation and maintenance manual.
n. Factory test report before shipment.
MTU diesel generator sets are widely used in:
Industrial power systems
Commercial buildings
Data centers
Hospitals
Oil & gas fields
Telecommunications and critical backup power systems
a. Stamford, Leroy Somer, Marathon, Mecc Alte, or customized alternator.
b. Deep Sea, SmartGen, ComAp, or customized controller.
c. Automatic Transfer Switch.
d. Synchronizing panel for parallel operation.
e. Remote monitoring system.
f. External fuel tank.
g. Larger base fuel tank.
h. Water jacket heater.
i. Battery charger.
j. PMG alternator.
k. Silent canopy.
l. Containerized generator set.
m. Trailer type generator set.
n. Spare parts kit.
o. Customized voltage and frequency.
MTU Powered Series Silent Type Gensets Configuration Table:
No. | GENSET | Prime Power | Standby Power | Engine | Cylinder | Displacement | Bore*Stroke | Fuel Consumption | Dimension | ||
KVA | KW | KVA | KW | MTU | (nos) | (L) | (mm) | (g/kw·h) | mm | ||
1 | LW-M224 | 280 | 224 | 308 | 246 | 6R1600G10F | 8 | 14 | 122/150 | 190 | 4000×1800×2300 |
2 | LW-M250 | 312.5 | 250 | 343 | 275 | 6R1600G20F | 10 | 17.5 | 122/150 | 191 | 4000×1800×2300 |
3 | LW-M300 | 375 | 300 | 412 | 330 | 8V1600G10F | 10 | 17.5 | 122/150 | 190 | 4000×1800×2300 |
4 | LW-M320 | 400 | 320 | 440 | 352 | 8V1600G20F | 12 | 21 | 122/150 | 192 | 4300×2100×2500 |
5 | LW-M360 | 450 | 360 | 495 | 396 | 10V1600G10F | 12 | 21 | 122/150 | 191 | 4300×2100×2500 |
6 | LW-M400 | 500 | 400 | 550 | 440 | 10V1600G20F | 12 | 23.88 | 130/150 | 161.2 | 4500×2100×2600 |
7 | LW-M480 | 600 | 480 | 660 | 528 | 12V1600G10F | 12 | 23.88 | 130/150 | 161.2 | 4700×2100×2600 |
8 | LW-M528 | 660 | 528 | 726 | 580 | 12V1600G20F | 16 | 31.84 | 130/150 | 178.6 | 4700×2100×2600 |
9 | LW-M520 | 650 | 520 | 715 | 572 | 12V2000G25 | 16 | 31.84 | 130/150 | 200.9 | 4700×2100×2600 |
10 | LW-M640 | 800 | 640 | 880 | 704 | 12V2000G65 | 18 | 35.82 | 130/150 | 226 | 6000×2300×2930 |
11 | LW-M728 | 910 | 728 | 1001 | 800 | 16V2000G25 | 12 | 48.7 | 165/190 | 246.2 | 6000×2300×2930 |
12 | LW-M800 | 1000 | 800 | 1100 | 880 | 16V2000G65 | 12 | 57.2 | 170/210 | 269.7 | 6000×2300×2930 |
13 | LW-M910 | 1137 | 910 | 1250 | 1001 | 18V2000G65 | 12 | 57.2 | 170/210 | 288.2 | / |
14 | LW-M1000 | 1250 | 1000 | 1375 | 1100 | 12V4000G21R | 12 | 57.2 | 170/210 | 303.3 | / |
15 | LW-M1150 | 1437 | 1150 | 1580 | 1265 | 12V4000G23R | 8 | 14 | 122/150 | 190 | / |
16 | LW-M1280 | 1600 | 1280 | 1760 | 1408 | 12V4000G23 | 10 | 17.5 | 122/150 | 191 | / |
17 | LW-M1360 | 1700 | 1360 | 1870 | 1496 | 12V4000G23 | 10 | 17.5 | 122/150 | 190 | / |
18 | LW-M1450 | 1812 | 1450 | 1993 | 1595 | 12V4000G63 | 12 | 57.2 | 170/210 | 342.3 | / |
19 | LW-M1640 | 2050 | 1640 | 2255 | 1804 | 16V4000G23 | 16 | 76.3 | 170/210 | 384.3 | / |
20 | LW-M1880 | 2350 | 1880 | 2585 | 2068 | 16V4000G63 | 16 | 76.3 | 170/210 | 423.3 | / |
21 | LW-M2000 | 2500 | 2000 | 2750 | 2200 | 20V4000G23 | 20 | 95.4 | 170/210 | 478 | / |
22 | LW-M2330 | 2912 | 2330 | 3203 | 2563 | 20V4000G63 | 20 | 95.4 | 170/210 | 518.8 | / |
23 | LW-M2500 | 3125 | 2500 | 3437 | 2750 | 20V4000G63L | 20 | 95.4 | 170/210 | 558.9 | / |
MTU powered open type diesel generator sets are suitable for many industries and projects, including:
a. Factory power supply.
b. Industrial backup power.
c. Data center emergency power.
d. Hospital standby power.
e. Mining project power.
f. Oil and gas projects.
g. Commercial buildings.
h. Construction sites.
i. Water treatment plants.
j. Telecom and communication projects.
k. Airports, ports, and railway projects.
l. Large infrastructure projects.
Open type diesel generator sets are widely used in projects where the generator is installed inside a machine room or protected area.
a. Easier inspection and maintenance.
b. Lower cost compared with silent type generator set.
c. Better ventilation and heat dissipation.
d. Convenient installation in generator rooms.
e. Suitable for large power output.
f. Easy access to engine, alternator, radiator, and control panel.
For customers who require lower noise level or outdoor installation, we can also provide silent type or containerized MTU diesel generator sets.
Each diesel generator set can be tested before delivery to ensure stable performance.
a. Appearance inspection.
b. Wiring and connection checking.
c. Engine starting test.
d. No-load running test.
e. Load test.
f. Voltage and frequency checking.
g. Control panel function test.
h. Emergency stop test.
i. Protection system test.
j. Final packing inspection.
Hongkong Linkworld Equipment Co., Limited is a professional power equipment supplier focusing on diesel generator sets, power transformers, switchgear, and control panels.
We work with experienced manufacturing partners to provide reliable power solutions for overseas customers. From model selection, technical confirmation, production follow-up, testing, packing, shipping, and after-sales support, we help customers complete their projects more smoothly.
a. Professional supplier of diesel generator sets and power equipment.
b. MTU, Cummins, Perkins, Volvo, Deutz, Doosan, Weichai, Yuchai, SDEC and other engine options available.
c. Open type, silent type, trailer type, and containerized generator sets available.
d. Customized voltage and frequency available.
e. Suitable solutions for industrial, commercial, and infrastructure projects.
f. Factory testing before shipment.
g. Export packing suitable for sea transportation.
h. Fast quotation and technical support.
i. One-stop supply for generator sets, power transformers, switchgear, and control panels.
Looking for a reliable MTU powered open type diesel power generating set?
Contact Hongkong Linkworld Equipment Co., Limited today. Please tell us your required power, voltage, frequency, application, and destination port. We will recommend a suitable diesel generator set and provide a competitive quotation for your project.
Hongkong Linkworld Equipment Co., Limited
Reliable Supplier of Diesel Generator Sets, Power Transformers, Switchgear & Control Panels
