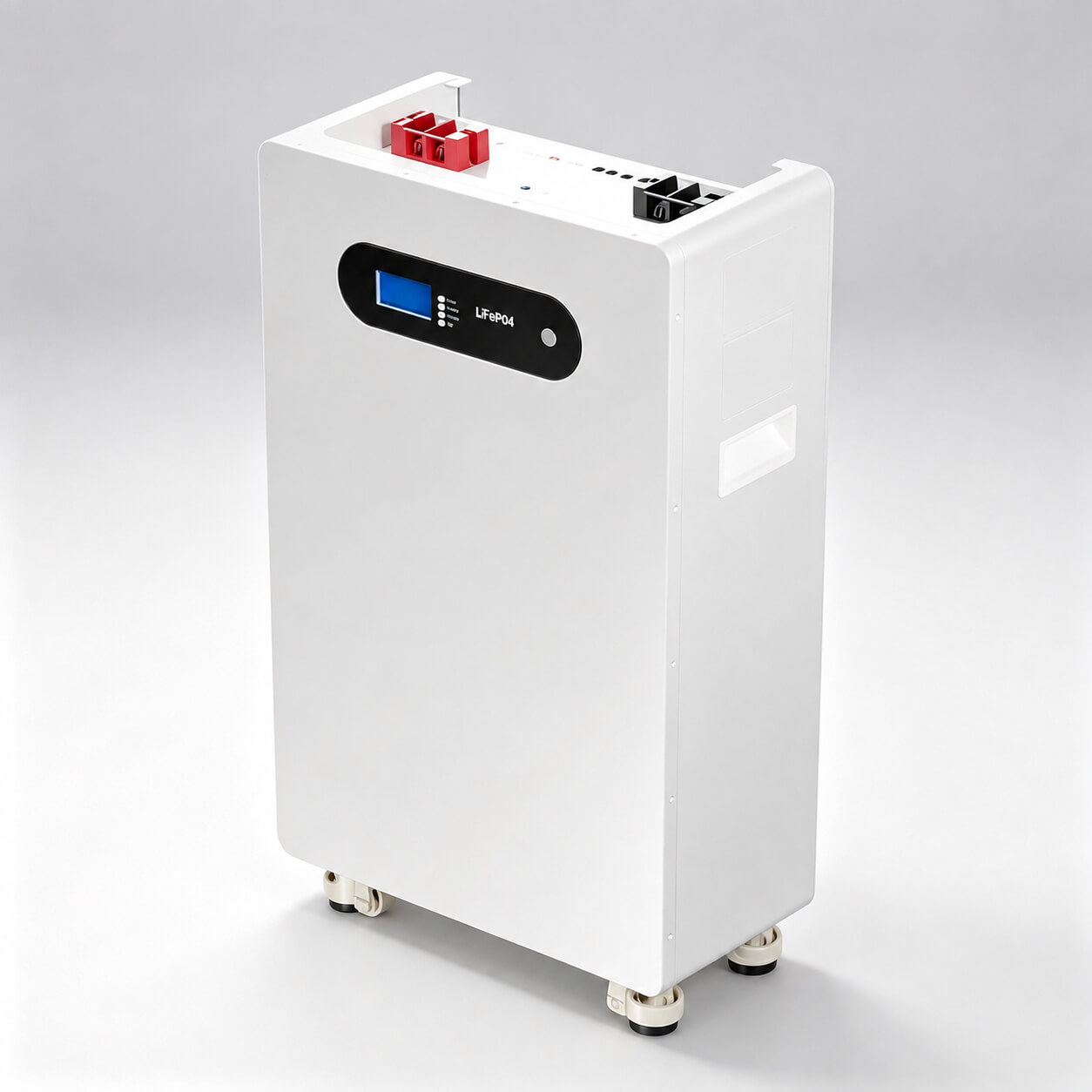

51.2V 314Ah 16.08kWh LiFePO4 Battery – Low Voltage LFP Energy Storage Battery
The GLM-314 Low Voltage LiFePO4 Battery is a high-capacity lithium iron phosphate battery designed for residential and commercial energy storage applications.
With a rated voltage of 51.2V, capacity of 314Ah, and total energy of 16.08kWh, this battery provides reliable, safe, and long-lasting energy storage for solar PV systems,
backup power systems, and off-grid applications. Featuring advanced LiFePO4 battery technology, an intelligent BMS battery management system, multiple communication
interfaces, and compatibility with major inverter brands, the GLM-314 is an ideal solution for flexible and scalable energy storage projects.
16.08kWh Large Energy Capacity
51.2V 314Ah battery capacity provides stable energy storage for residential and commercial power applications.
Long Cycle Life
More than 6,000 cycles at 90% DOD, helping reduce the overall lifetime cost of the energy storage system.
High Safety LiFePO4 Chemistry
Lithium iron phosphate cells provide excellent thermal stability, chemical stability, and enhanced operational safety.
Intelligent BMS Protection
Integrated battery management system provides real-time monitoring and protection against overcharge,
over-discharge, overcurrent, short circuit, and abnormal temperature.
Fast Charging & Discharging
Recommended charging and discharging current of up to 157A, supporting efficient energy transfer and shorter charging time.
Wide Operating Temperature Range
Suitable for different environmental conditions with charging temperatures from 0°C to 55°C and discharge temperatures from -20°C to 60°C.
Multiple Communication Interfaces
Supports RS485, RS232, and CAN communication for easy connection with inverters and energy management systems.
Wireless Connectivity
Optional WiFi and Bluetooth communication allows convenient system monitoring and management.
Wide Inverter Compatibility
Compatible with popular inverter brands including Growatt, Solis, GoodWe, Sol-Ark, SRNE, and DEYE.
Compact Floor-Standing Design
Slim cabinet structure with integrated wheels makes installation, transportation, and system maintenance easier.

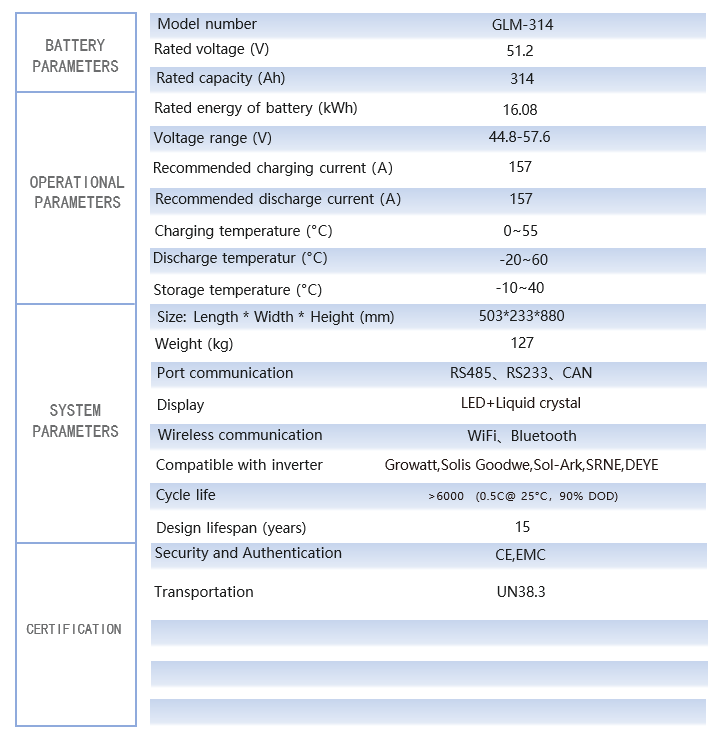

Technical Specifications
The 51.2V 314Ah LiFePO4 battery is suitable for a wide range of energy storage applications, including:
Residential solar energy storage systems
Home battery backup systems
Commercial energy storage systems
Off-grid solar power systems
Hybrid solar inverter systems
Telecom backup power
UPS and emergency power systems
Small industrial energy storage applications
Compared with traditional lead-acid batteries, LiFePO4 batteries offer longer cycle life, higher usable capacity, faster charging, lower
maintenance requirements, and improved energy efficiency. The GLM-314 combines a 16.08kWh energy capacity, intelligent BMS,
flexible communication interfaces, and broad inverter compatibility, making it a practical battery solution for modern solar
and energy storage projects.
High Energy Density
Large 314Ah capacity in a compact floor-standing enclosure.
Long Service Life
More than 6,000 cycles and a design lifespan of up to 15 years under suitable operating conditions.
Reliable System Protection
Advanced BMS continuously monitors battery status and helps protect the battery system during operation.
Flexible System Integration
RS485, RS232, CAN, WiFi, and Bluetooth communication options simplify connection with different inverter and monitoring systems.
Easy Installation
Compact vertical cabinet design saves installation space and allows convenient deployment in residential or commercial environments.
The battery has a rated energy capacity of 16.08kWh, based on a rated voltage of 51.2V and capacity of 314Ah.
Yes. It is designed for solar PV energy storage and can be integrated with compatible low-voltage hybrid or off-grid inverters.
The battery supports communication with inverter brands such as Growatt, Solis, GoodWe, Sol-Ark, SRNE, and DEYE. Compatibility
should be confirmed according to the inverter model and communication protocol before installation.
The battery can achieve more than 6,000 cycles under specified operating conditions, including 0.5C, 25°C, and 90% depth of discharge.
Yes. Its 16.08kWh capacity makes it suitable for residential backup power, solar self-consumption, and off-grid applications.
We can provide battery solutions for residential, commercial, solar, and backup power projects. OEM services, customized battery
configurations, inverter matching, and project-based energy storage solutions are available according to customer requirements.
Contact us for technical specifications, quotations, inverter compatibility, and energy storage system configuration.
