The GLR-100 LiFePO4 Battery is a reliable 51.2V 100Ah lithium iron phosphate battery designed for residential and commercial energy storage applications. With 5.12kWh rated energy, long cycle life and intelligent BMS protection, it provides a safe and efficient solution for solar energy storage, backup power and off-grid systems.
Featuring RS485, RS232 and CAN communication, the battery is compatible with multiple mainstream inverter brands and supports rack-mounted, wall-mounted and stand-mounted installation.
51.2V 100Ah / 5.12kWh rated capacity
Premium LiFePO4 battery technology
≥3,000 cycles at 90% DOD
Up to 15 years design lifespan
Built-in intelligent BMS protection
Recommended 50A charging & discharging current
Wide operating temperature range
RS485 / RS232 / CAN communication
WiFi & Bluetooth communication support
Compatible with Growatt, Solis, GoodWe, Sol-Ark, SRNE, Deye and other inverter systems

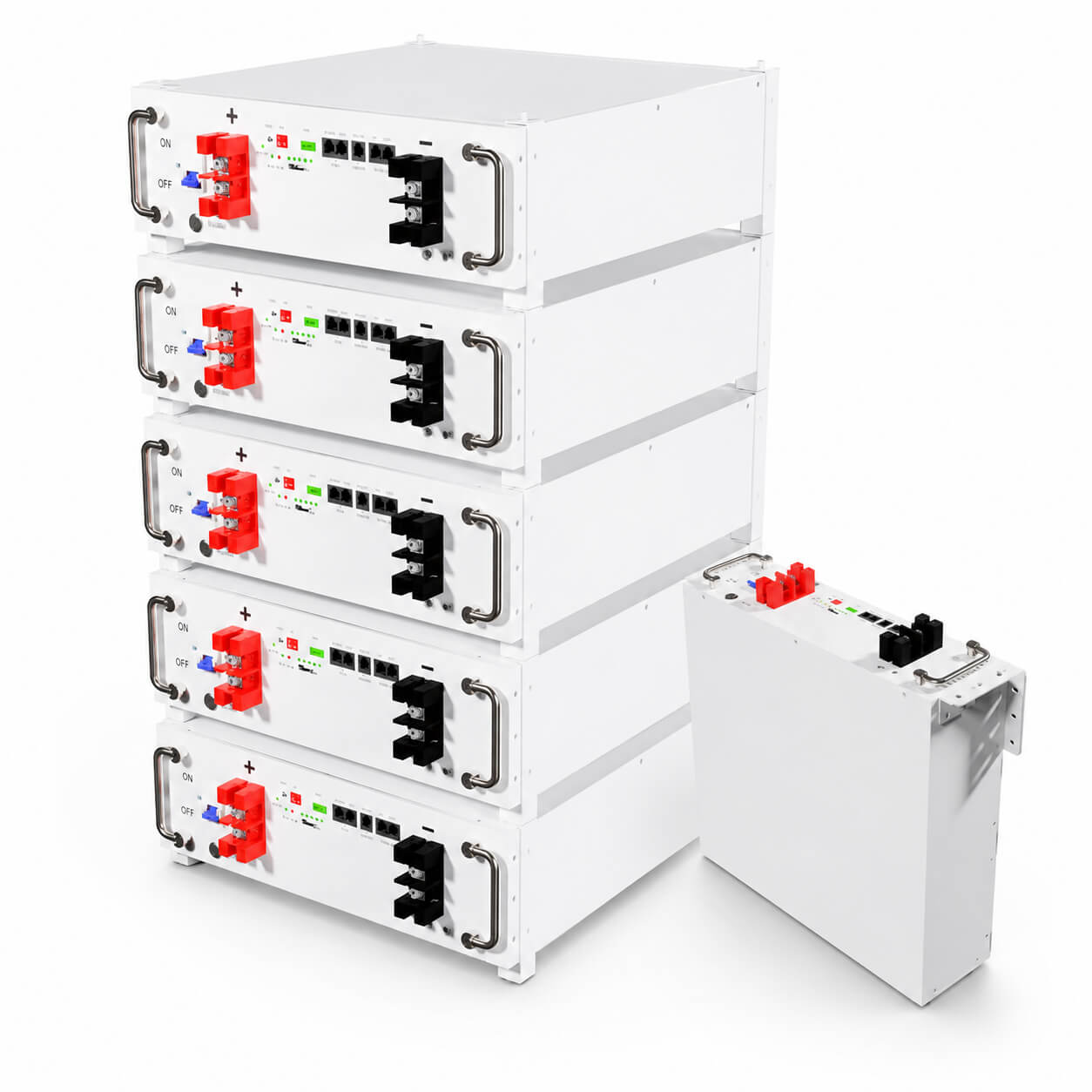

Rack-mounted, wall-mounted or stand-mounted installation
CE / EMC / UN38.3 compliant
Main Specifications
| Parameter | Specification |
|---|---|
| Model | GLR-100 |
| Battery Type | LiFePO4 |
| Rated Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Rated Energy | 5.12kWh |
| Voltage Range | 44.8–57.6V |
| Recommended Charge Current | 50A |
| Recommended Discharge Current | 50A |
| Cycle Life | ≥3,000 cycles |
| Dimensions | 440 × 440 × 133 mm |
| Weight | 48 kg |
| Communication | RS485 / RS232 / CAN |
| Wireless Communication | WiFi / Bluetooth |
| Installation | Rack / Wall / Stand Mounted |
| Design Lifespan | 15 Years |
| Certification | CE, EMC, UN38.3 |
Ideal for home solar energy storage, off-grid systems, hybrid solar systems, backup power systems, telecom backup power and small commercial energy storage projects.
51.2V 100Ah 5.12kWh LiFePO4 battery with intelligent BMS, ≥3,000 cycles, CAN/RS485 communication and broad inverter compatibility. Designed for safe and reliable solar and backup energy storage applications.
